next and previous filters

next and previous let CQL look ahead and look backwards to determine what follows or precedes the current position. Each of these modifies the value of the current position as CQL traverses the positions following or preceding in the PGN file.

Regular expressions

The syntax for next and previous is based on the familiar regular expression syntax (e.g Wikipedia on regular expressions).

Regular expressions are usually used as a way to search for strings of characters inside text. For example, the regular expression That was a (good )+game could be used to find instances of "That was a good game" or "That was a good good game" or "That was a good good good game" and so on.

To convert the concept of ordinary regular expressions to CQL and apply it on chess positions, two changes need to be made.

Regular expressions on trees

Usually regular expressions are applied to a linear string of characters, like a text file. However, we can imagine a tree each node of which is labeled with a single characters. Each path from the root to a leaf of the tree denotes a particular linear string. We can match a regular expression to the tree by matching the expression to one of the strings from the root to the leaf.

Regular expressions in chess

In normal regular expressions, we match a string made up of characters. In chess, instead each character can be any chess position. So a "string" of chess positions is just a linear sequence of chess positions, arranged to make a legal game.

The regular expression itself, now uses filters to match a particular linear sequence of chess positions. For example, the regular expression

check*

will match any sequence of 0 or more positions in which one side is in check. Likewise

check+ stalemate

would match any sequence of 1 or more positions of check, followed by a stalemate.

Regular expressions in chess trees

Now we combine the concepts of regular expressions on trees and of regular expressions in chess to get what we want: regular expressions on chess trees. A chess tree is just a game tree: each node is a position, and a node is connected to its children by chess moves, according to the PGN file.

Thus, a chess regular expression matches a chess tree if there is a string of chess positions from the root of the tree to a leaf of the tree that is matched by the regular expression.

Regular expression chess syntax

CQL supports most of the usual character regular expression syntax, applied to filters instead of to other character regular expressions:

regexp meaning character example chess example

. any .z . check

* zero or more repetitions z* check*

+ one or more repetitions z+ check+

? optional z? check?

{} repetition z{2,3} check{2 3}

() grouping (yz)* (check move from k)*

next and previous syntax

A next filter consists of the word next, an optional range, the optional keyword nestban, and a list of constituents enclosed in parentheses:

  next (check) ; current position is a check
  next 5 100 (check)
  next 5 100 nestban (check*)
  next (check
        move from k
        attack (R _)
  next 5 100 ((move from k move from K)+)

A previous filter is the same, except previous is used instead of next. A constituent is a either a filter, or it is formed from another constituent by using the special regular expression characters: +, *, (), {}, or ?.

next filter semantics

We begin by discussing semantics when all the arguments are filters.

next (filter₁ filter₂ ... filter_n)

matches the current position if:

filter₁ matches the current position;
filter₂ matches the next position following the current position
filter₃ matches the next position after the next position following the current position
... and so on

Before an argument filter is evaluated to determine whether it matches a position, the current position is set to that position.

If variations is set, then next will also consider positions that move into variations. Otherwise, only mainline positions are considered.

For example, D. Gurgenidze
1.p Polish Chess Federation ty
1985

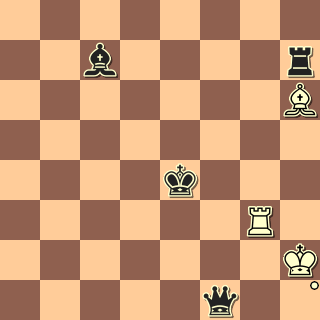

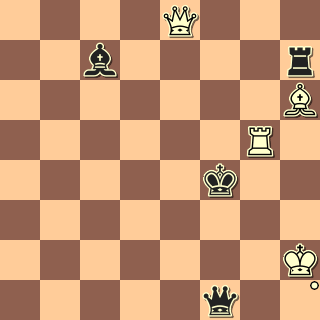

Left diagram: 8.Qe3+! (current position) 8..Kxe3+ (position 2) 9.Rg3+ (position 3) 9..K-e4 stalemate (position 4 and right diagram)

next (check check check stalemate)

The above study matches following 8.Qe3+! because the current position is check, positions 2 and 3 are also checks, and position 4 is stalemate.

regular expression characters with next

A regular expression always matches the longest possible sequence of positions. The specific characters in detail:

The '*' symbol

'*' means "repeat 0 or more times".

Thus, consider the filter

  next (not check
        check*)

The last 'check' is modified by the '*' so it is repeated 0 or more times. Thus, the expression is equivalent to:

  next (not check) ; repeat 0 times
  or next (not check check) ; repeat 1 times
  or next (not check check check) ; repeat 2 times
  or next (not check check check check) ; repeat 3 times
  ....; and so on forever

Therefore, the next filter matches a position if either:

The current position is not a check, or
The current position is not a check and the next position is a check, or
The current position is not a check and the next position is a check and the following position is a check... and so on.

Because of the rule above about matching longest sequence of position, the actual filter will match the longest possible sequence of checks that it can starting from a not check in the current position.

The '+' symbol

The '+' symbol following a constituent means "repeat 1 or more times". Thus,

	next (move from Q
	      move from [Kk]+
              mate
	     )

will match any position from which the next move is a move by the White queen; following which is a sequence of one or more positions from which a King moves; following which there is a position that is mate.

{ range } repetition symbol

When the braces '{' and '}' enclose a range they denote repetition of the preceding constituent a number of times that lies inside the range. For example,

  next (move from Q
        not move from Q {10 20}
        move from Q)

will match a sequence of moves that begins with a move of the a white queen, then has between 10 and 20 consecutive moves of any piece other than a white queen, and ends with a move of a white queen.

The '?' symbol

The '?' following a constituent means "repeat 0 or 1 times". For example,

	next (move from Q
	      move from k?
	      mate)

means

	next (move from Q
	      mate)
	or
	next (move from Q
	      move from k
	      mate)

That is, either White delivers mate with the Queen, or after White's Queen move, black delivers mate by a King move.

The '()' wildcard symbol

A sequence of filters inside parentheses matches a sequence of consecutive positions that match the filters respectively. This construct is used exclusively with wildcards.

For example, suppose you want to match a white queen move followed by a black move followed by a sequence of White checks by a pawn followed by black king moves followed by mate. You can use this:

  next (move from Q
        btm
        (move from P ; white moves, giving check
         check       ; black to move and is in check
        )+           ; repeat
       wtm           ; white delivers...
       mate)         ; mate to black

counting with next

next is countable when it has a range parameter. It counts the number of matched positions. For example,

next 5 1000 (check*)

will match positions from which, starting at the current position, at least 5 consecutive checks occur.

Because next with a range is countable, it may be sorted on:

   sort next 5 1000 (check*)

The output games can then be sorted based on the longest matched sequence of at least 5 which is just the longest sequence of checks.

Counting sequences: nextban

There is one problem with the code

   sort next 5 1000 (check*)

If there is a sequence of say 10 consecutive checks, then there will be a match on 5 of these. This will make the output difficult to read, with excessive "MATCH" being printed or annotations. It is clearer to require the sequence to start with at the earliest possible move. This can be done using the nestban keyword. The nestban keyword comes just before the left parenthesis. It indicates that the next filter should not match a position that is part of a sequence of positions that was already matched by the same filter.

  sort next 5 1000 nestban (check*)

You can see this used in many of the examples of longest sequence searching.

Note: If a next filter is inside a transform, then it is implicitly transformed into multiple distince next filters. These can sometimes result in confusing comments when using nestban.

Linearization: using move filter inside next when variations is set

When variations flag is set in the CQL header, next evaluates its constituent move filters a bit differently from usual. (The rules below seem complicated, but they give the intuitive behavior).

The problem these rules are designed to address is that the move filter matches a position Xbased on every possible move that arises from the position. However, as the next filter goes does the game tree, it only selects a single move at a time from X to evaluate. This can mean that the next filter winds up traversing a move from X that the move filter already rejected.

Suppose for example that a user wants to match positions that from which a bishop promotes, and from which the game lasts at least 10 moves. A natural way to write this is this:

cql (input test.pgn variations)
 next 10 1000 (move promote B
               .*
              )

Here, the user saying that in the current position, one side promotes to a bishop, and that following that move, there are 0 or more other moves. The range 10 1000 in the next says there must be at least 10 positions contained in the matched sequence.

Now conside the following excerpt from a PGN game:


23. e8Q (23. e8B? Rf4+! =)
23. ...Ng1
24. {many moves omitted}
...
44. Rf3 #

Call the position before white's 23'd move above X. The user does not want the CQL file to match X, because there is only one move following the bishop promotion. However, the above CQL would match the position without the rule specified below:

When X is evaluated, the move filter evaluates to true, because there is a matching move (a bishop promotion) from X.
From X, the next filter then evaluates the position after 23. e8Q. This position certainly matches the next constituent of the next filter, namely .*. The next filter goes on to match the position after 23...Ng1 and so on, all the way until 44. Rf3#
Since this represents at least 40 position, the whole next filter matches X.

To prevent this behavior, a new rule, called linearization was introduced in version 5.2. Under linearization, before evaluating any filters, the next filter chooses a single "line" in the game tree, from the root to a terminal position. All the move filters are then evaluated as if that "line" gave the only valid moves from a position. The remaining moves are discarded.

For example, in the PGN excerpt above, there are two lines:

the line 23. e8Q Ng1 ... 44. Rf3# is one line. When the next filter tries to choose the this line, the bishop underpromotion disappears from the game. Thus, the move filter in the CQL file, move promote B no longer matches the position X
the second line is 23. e8B Rf4+ . When the next filter selects this line, then the position X now does match the move filter, since there is bishop promotion at move 23. However, this line only has a length of three positions (X, and the positions after the next two moves). Since the length of this line is not long enough to fall within the 10 1000 range of the next filter, the next filter does not match X

Exceptions to linearization

Linearization is not applied in two cases. These rarely arise and this section can be safely skipped on first reading:

If the next filter never visits or needs to visit any positions following the current position, then there is nothing to linearize. For example, if the move filter in
```
    next (move to _ )
```
is not linearized, since there is only one filter in the next filter so the next filter never visits any other positions.
If a next filter (or any filter than can modify the current position) is inside another next, the linearization of the outer next filter does not affect the linearization of the inner next.

Combining these two principles, linearization may be disabled for a particular move filter inside a next filter by wrapping the move filter in another next filter.

To turn off linearization completely, use the --nolinearize option to cql (this option is unsupported).

Using wildcards to look for maneuvers

Wildcards are useful in isolating the particular pieces you're interested in in a maneuver. For example, in turton.cql, there is a next filter with these subfilters:

  next (...
        {not move from $front or $side}*
        move from $side to $criticalsquare
        ...
       )

In this particular theme, without going into details, we are particularly interested in the movements of the pieces $front and $side. We want to track where they go. So the first wildcard operator ensures that that we ignore movements of pieces other than those, and just focus on those pieces.

pitfalls in using previous and next

There are several issues to keep in mind when using these filters.

Always remember that the first filter in the next or previous filter's arguments matches the current position. This can be confusing, since the words 'next' and 'previous' might suggest that the first filter would match the next or previous positions, but they don't.
because next and previous each take arguments that are list of filters separated by whitespace, and because these constituent filters can be fairly complex, it is important to be careful as to which filters are matching a position and which are part of a larger filter. It is easy to write say "mainline check" thinking that this is one filter, when in fact it is two filters that will matched to two successive positions inside an argument list.
We recommend liberal use of braces to make the code clearer if there is any question. Always begin by testing the simplest possible next or previous filter, then adding in more complex arguments as necessary.
It is important to keep in mind that the current position changes as the next or previous filter matches positions. When that changes, so do all the piece variables.
next and previous by default print a lot of annotations. These annotations can be confusing or overwhelming with wildcards, because an annotation will be printed for every matched position. Use silent to silence the annotations.
Examples
